VY Energy Recovery Ventilator Installation: 97% Efficiency System Setup

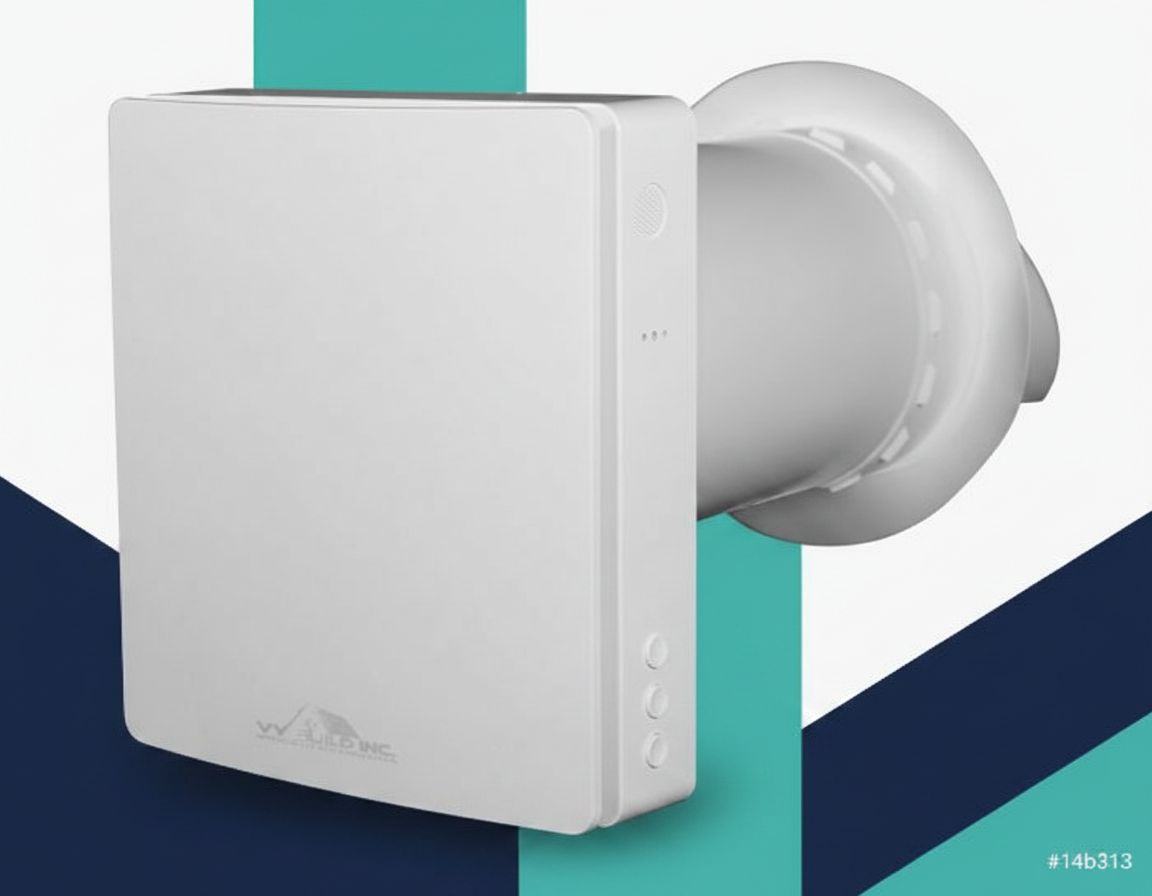

The VY Energy Recovery Ductless Ventilator represents a breakthrough in residential ventilation technology, delivering an impressive 97% energy recovery efficiency. This comprehensive installation guide provides construction professionals and homeowners with the technical knowledge needed to properly install and optimize this advanced ventilation system for maximum performance and energy savings.

Pre-Installation Planning and System Sizing

Before beginning installation, proper system sizing is critical for achieving the 97% efficiency rating. The VY ERV system's ductless design simplifies sizing calculations compared to traditional ducted systems, but proper airflow requirements must still be calculated based on home square footage and occupancy.

Start by calculating the required ventilation rate using the building's floor area and occupancy levels. Most residential applications require 0.35 air changes per hour, but this can vary based on local building codes and specific indoor air quality requirements. The ductless configuration eliminates the need for extensive ductwork calculations, making the VY ERV ideal for retrofit applications or new construction where traditional ducted systems would be impractical.

Consider the unit's placement during the planning phase. The VY ERV requires access to both indoor and outdoor air, with adequate clearance for maintenance access. Unlike traditional systems that require basement or mechanical room installation, this ductless unit can be mounted through exterior walls, providing greater flexibility in placement options.

Wall Mounting and Structural Requirements

The VY Energy Recovery Ductless Ventilator requires proper structural support and weatherproofing for optimal performance. Begin by selecting a suitable exterior wall location that provides adequate clearance from windows, doors, and other building components. The unit should be positioned to avoid prevailing wind patterns that could affect performance.

Cut the wall opening according to manufacturer specifications, ensuring the opening is square and properly sized. Use appropriate cutting tools for your wall system – whether conventional framed construction, OSBLOCK insulated wood formblocks, or other building systems. The high R-value insulation in modern wall assemblies requires careful sealing around the unit to maintain thermal performance.

Install the mounting sleeve with proper flashing and weatherproofing. Apply a continuous bead of high-quality sealant around the perimeter, and ensure proper integration with the building's weather barrier system. For installations in wood formblock walls or other high-performance assemblies, pay particular attention to thermal bridging and air leakage prevention.

Electrical Connections and Controls Integration

The VY ERV system requires proper electrical connections for optimal operation and control integration. Install a dedicated 120V circuit with appropriate overcurrent protection, following local electrical codes and manufacturer specifications. The unit's energy-efficient operation typically draws minimal power, but a dedicated circuit ensures reliable operation without interference from other equipment.

Connect the control wiring according to the provided wiring diagram. The system can integrate with existing HVAC controls or operate as a standalone unit with its own controls. For maximum energy savings, consider integrating with programmable thermostats or home automation systems that can adjust ventilation rates based on occupancy and outdoor conditions.

Install the indoor control panel in a convenient location for occupant access. The controls allow adjustment of ventilation rates, monitoring of filter status, and system diagnostics. Proper control setup is essential for maintaining the 97% efficiency rating throughout the system's operational life.

Heat Recovery Core Installation and Calibration

The heart of the VY ERV system is its high-efficiency heat recovery core, which achieves the impressive 97% energy recovery rate. During installation, handle the heat exchanger core carefully to avoid damage to the delicate heat transfer surfaces. The core should be installed with proper orientation according to manufacturer markings.

Verify that all air passages are clear and unobstructed. The heat recovery core relies on precise airflow patterns to achieve maximum efficiency, and any blockages or improper installation can significantly reduce performance. Check that the core is properly sealed within the unit housing to prevent air bypass, which would reduce energy recovery effectiveness.

After installation, perform initial calibration of the heat recovery system. This includes verifying proper airflow balance between incoming and outgoing air streams, checking temperature differentials across the heat exchanger, and ensuring the unit operates within specified parameters for maximum energy recovery.

Commissioning and Performance Verification

Proper commissioning is essential for achieving the VY ERV's 97% efficiency rating. Begin with a complete system inspection, verifying all connections, seals, and components are properly installed. Check that all air passages are clear and that the unit is level and properly supported.

Perform airflow measurements using calibrated instruments to verify the system delivers the designed ventilation rates. Measure both supply and exhaust airflows, ensuring they are balanced within manufacturer tolerances. Unbalanced airflow can reduce energy recovery efficiency and create pressure imbalances in the building.

Conduct temperature and humidity measurements to verify heat recovery performance. The system should demonstrate significant temperature recovery between incoming and outgoing air streams, with minimal impact on indoor humidity levels. Document these measurements for future reference and warranty purposes.

Test all controls and safety features, including filter status indicators, airflow monitoring, and any integrated control systems. Provide occupant training on proper operation and maintenance procedures to ensure long-term performance.

Maintenance Protocols for Sustained 97% Efficiency

Maintaining the VY ERV's exceptional efficiency requires regular maintenance protocols. Establish a preventive maintenance schedule that includes filter replacement, heat exchanger cleaning, and system performance verification. Regular maintenance is crucial for sustaining the 97% energy recovery rating throughout the system's service life.

Filter maintenance is particularly critical for ductless ERV systems. Clean or replace filters according to manufacturer recommendations, typically every 3-6 months depending on local air quality conditions. Dirty filters not only reduce indoor air quality but can significantly impact energy recovery efficiency by restricting airflow through the heat exchanger core.

Schedule annual professional inspections to verify continued performance and identify potential issues before they impact efficiency. These inspections should include heat exchanger cleaning, control calibration, and performance testing to ensure the system continues to deliver its rated 97% energy recovery efficiency.

Key Takeaways

• Proper system sizing and placement are critical for achieving the VY ERV's 97% efficiency rating
• Careful wall installation with proper weatherproofing maintains building thermal performance
• Regular filter maintenance is essential for sustained energy recovery efficiency
• Professional commissioning and annual inspections ensure long-term optimal performance
• Integration with building controls maximizes energy savings and occupant comfort

Maximize Your Building's Energy Performance

The VY Energy Recovery Ductless Ventilator offers construction professionals and homeowners an efficient solution for meeting ventilation requirements while minimizing energy consumption. When properly installed and maintained, this system delivers exceptional 97% energy recovery performance that contributes to overall building efficiency and occupant comfort.

For technical support during installation or to explore complete building solutions, contact VY Build Inc. Our team provides comprehensive support for all high-performance building components, from ERV systems to complete VY Flex House Kits designed for energy-efficient construction.
