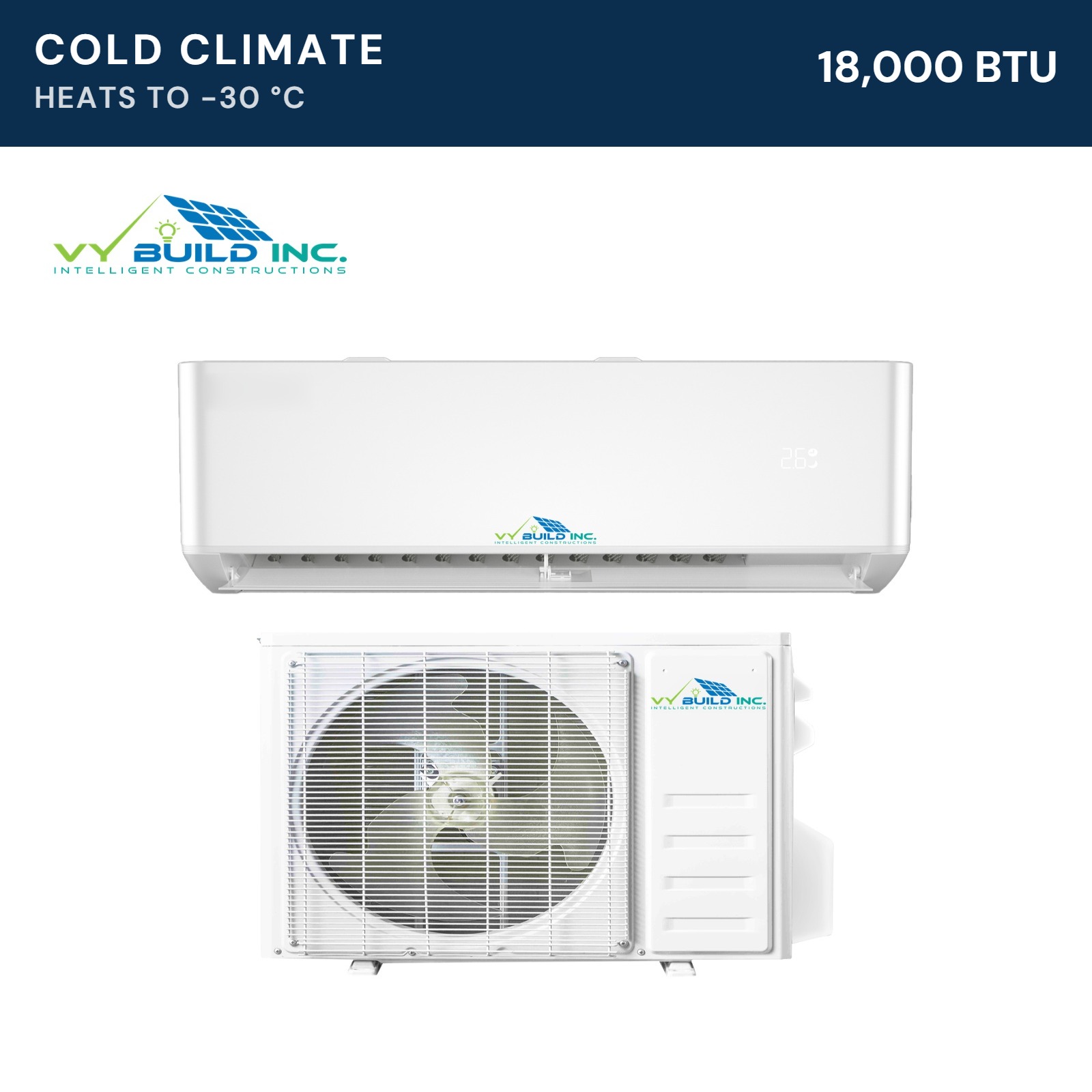

18000 BTU Mini Split Air Conditioner Heat Pump 22 SEER

ENERGY STAR Certified

Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.

AHRI Certified

Introducing the VY-1800MZS Multi Zone Mini Split Air Conditioner Heat Pump – the perfect solution for complete temperature control in multiple zones. With its 18000 BTU capacity, this system provides powerful heating and cooling for up to 750-1000 sq ft, making it ideal for larger spaces.

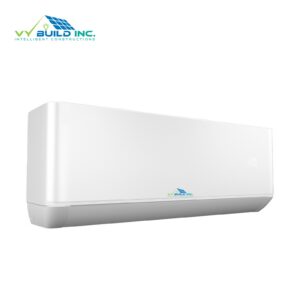

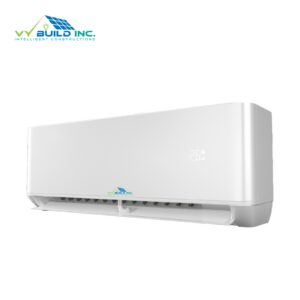

Enjoy a range of convenient features with the indoor unit. Independant dehumidification ensures a comfortable and dry environment, while the 24-hour timer allows you to set your desired temperature in advance. Choose from various modes such as Turbo, Auto, Sleep, and Eco to customize your comfort. The UP-Down and Left-Right Auto Swing ensures even distribution of air throughout the room. In case of emergency, the unit is equipped with an emergency button for quick response. The anti-cold wind feature pre-heats the air to prevent discomfort during cold weather. With the auto restart function, the unit will resume operation after a power outage. Additional features such as refrigerant leak detection, self-troubleshooting, and C/F switch enhance the overall convenience and efficiency of the system. The top filter is easily removable for easy cleaning, and the fire-proof electrical box ensures safety. The louver position memory feature saves your preferred settings, and the one-press detach allows for quick and easy maintenance. Enjoy a healthy indoor environment with the high-temp sterilization feature and the healthy filter. The installation supports make the setup process hassle-free. The follow-me function utilizes the remote sensor, providing personalized comfort wherever you go. Control the unit through the TCL Home App for added convenience. The VY-1800MZS comes with a 10-year compressor warranty and a 5-year parts warranty, ensuring long-lasting performance and peace of mind.

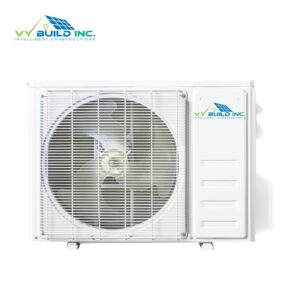

The outdoor unit of the VY-1800MZS is equipped with variable speed (inverter) technology, offering precise control of the system and maintaining a stable room temperature. The factory-installed base pan heater and PTC heater ensure reliable operation in cold weather. With low voltage controls and the auto-restart function, the unit performs optimally and efficiently. Additional features such as condenser high-temperature protection, anti-corrosive gold fin coating, refrigerant leak detection, self-troubleshooting, and auto defrost make the outdoor unit robust and reliable. The mini split system can heat and cool even in extreme temperatures, ranging from -?°F to ?°F, eliminating the need for a backup heat source in most climates. The VY-1800MZS comes with a 10-year compressor warranty and a 5-year parts warranty, offering peace of mind for years to come.

Experience stable and consistent room temperature with the stepless frequency adjustment feature. This precise control not only saves energy, but also reduces sound levels, ensuring a quiet and comfortable environment. The smart inverter technology allows the system to reach cooler temperatures faster and maintain them consistently, within just +/- 1 degree Fahrenheit. This prevents energy spikes and noisy operation, resulting in up to 60% energy savings.

Enjoy a soothing and quiet cooling experience with the VY-1800MZS. Its ultra-quiet operation provides best-in-class comfort. The auto deep clean feature utilizes water molecules in the air to clean away dust, dirt, and impurities, ensuring cleaner and fresher air. Simply hit the button and enjoy the efficiency and convenience of this superior cleaning program. Keeping the system clean is easy, thanks to the thoughtful construction that allows for easy and efficient filter, duct, and fan cleaning.

Experience smart airflow with the VY-1800MZS mini split. The unit adjusts fan positioning according to the mode, providing cooling airflow from above or warm heat from below. This allows for a customized and comfortable airflow pattern according to your preference.

Upgrade your comfort and control with the VY-1800MZS Multi Zone Mini Split Air Conditioner Heat Pump. Enjoy precise temperature control, energy efficiency, quiet operation, easy maintenance, and clean air in multiple zones, all backed by a 10-year compressor warranty and a 5-year parts warranty.

22 SEER Technical Specifications Model   VY Build North America Multi Zone User Manual

• Model VY-1800MZS
• Warranty : 10 Year Warranty on the Compressor and 5 Year Warranty on other parts
• Ready to install, the unit is prefilled with R410 A Refrigerant and a Line set 16 ft is included
• Type : cooling & heating
• Control type : Remote
• Power supply : 208/230V – /60Hz / 1P
• Rated Cooling (95F/35C)
• Rated Heating (47F/8.3C)
• Rated cooling capacity EER : 13
• SEER : 22
• Rated Heating capacity : Btu/h 18000 Btu/W.h
• HSPF Rating (Region IV) : 8.8
• HSPF Rating (Region V) : 7.6
• COP : W/W 3.5
• COP (5℉/-15℃) : W/W 1.75
• Max. Fuse size : A 20
• MXimum Operation Pressure : PSIG 550
• Moisture removal Liters/h 2.2
•  Indoor noise level at cooling –  Turbo/High/Med./Low/Mute – 48/45/40/35/31
• Outdoor noise level dB (A) 52
• Connecting Gas Pipe:  1/2 inch
• Connecting Liquid Pipe : 1/4 inch
• Connecting Wire Size x Core number : 4×16 AWG
• Suitable area up to 700 – 1000 sqft
• Net Indoor / dimension (W x D x H) : 1100×333×222 mm / 43.31×13.11×8.74 inch
• Outdoor Dimension (W x D x H) : 845x380x699 mm / 33.26×14.96×27.51 inch
• Net Indoor Weight (lbs) : 30.9
• Net Outdoor Weight (lbs) : 84.9
