VY Garage 24 × 24 Windows, Doors & Plan Kit
$5,350.00
Three Drutex windows, the service door and the 24 × 24 garage plan — one fixed price, delivered to Prince Edward Island. Triple glazed $5,350, double glazed $5,250. The overhead garage door is not included; ask us and we will price one alongside.
This used to be a complete garage kit. We now supply the part we do best — the windows, the door, and the plan — and leave the framing, roof and slab to your builder. Why we changed.
The Drutex window and door set for the VY Garage 24 × 24, plus the garage plan itself — one package, one price, landed on Prince Edward Island.
Walk through the plan
A walkthrough of the VY Flex Garage, filmed from the drawing set. Open it on YouTube if you would rather watch it there.

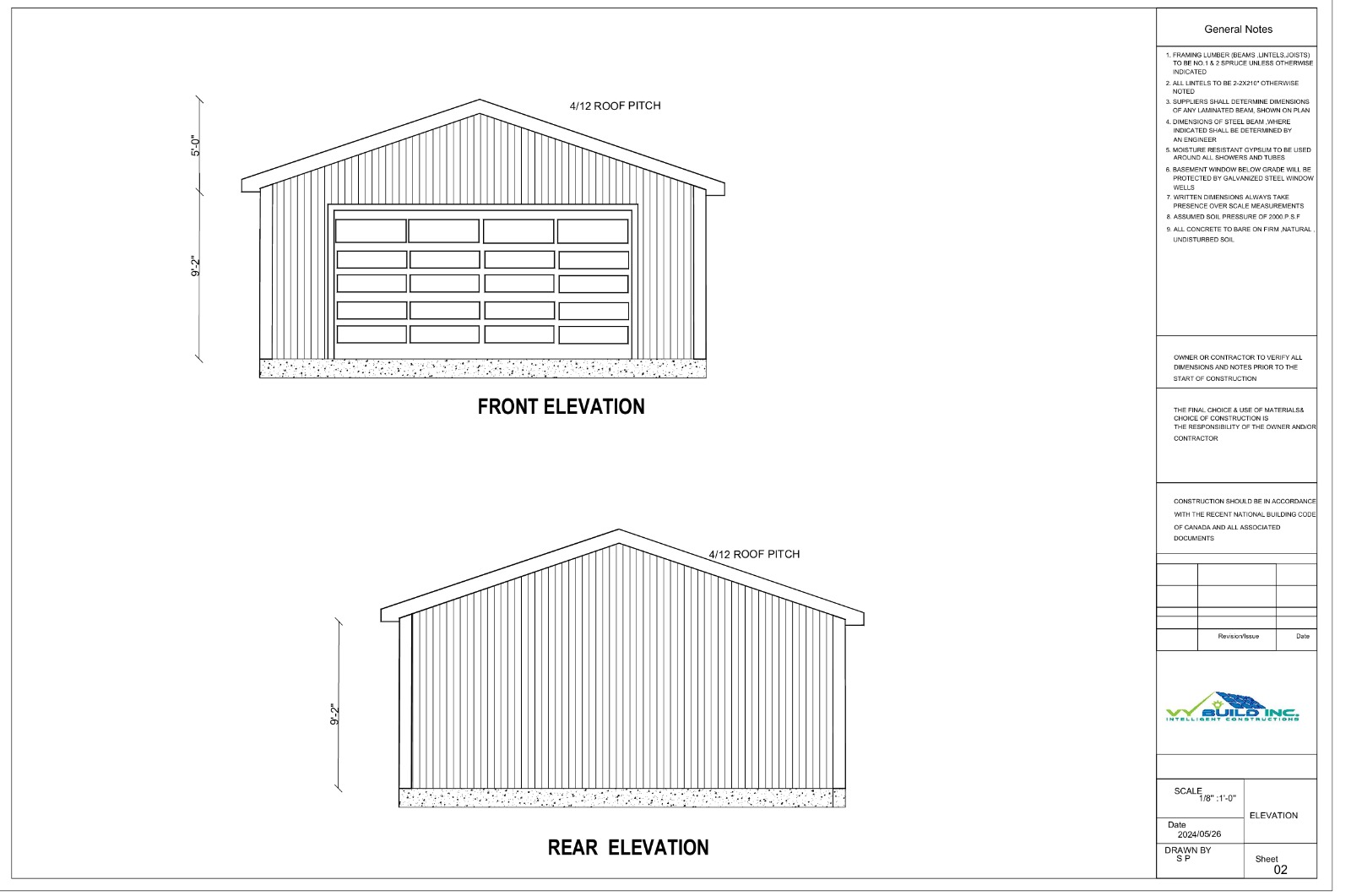

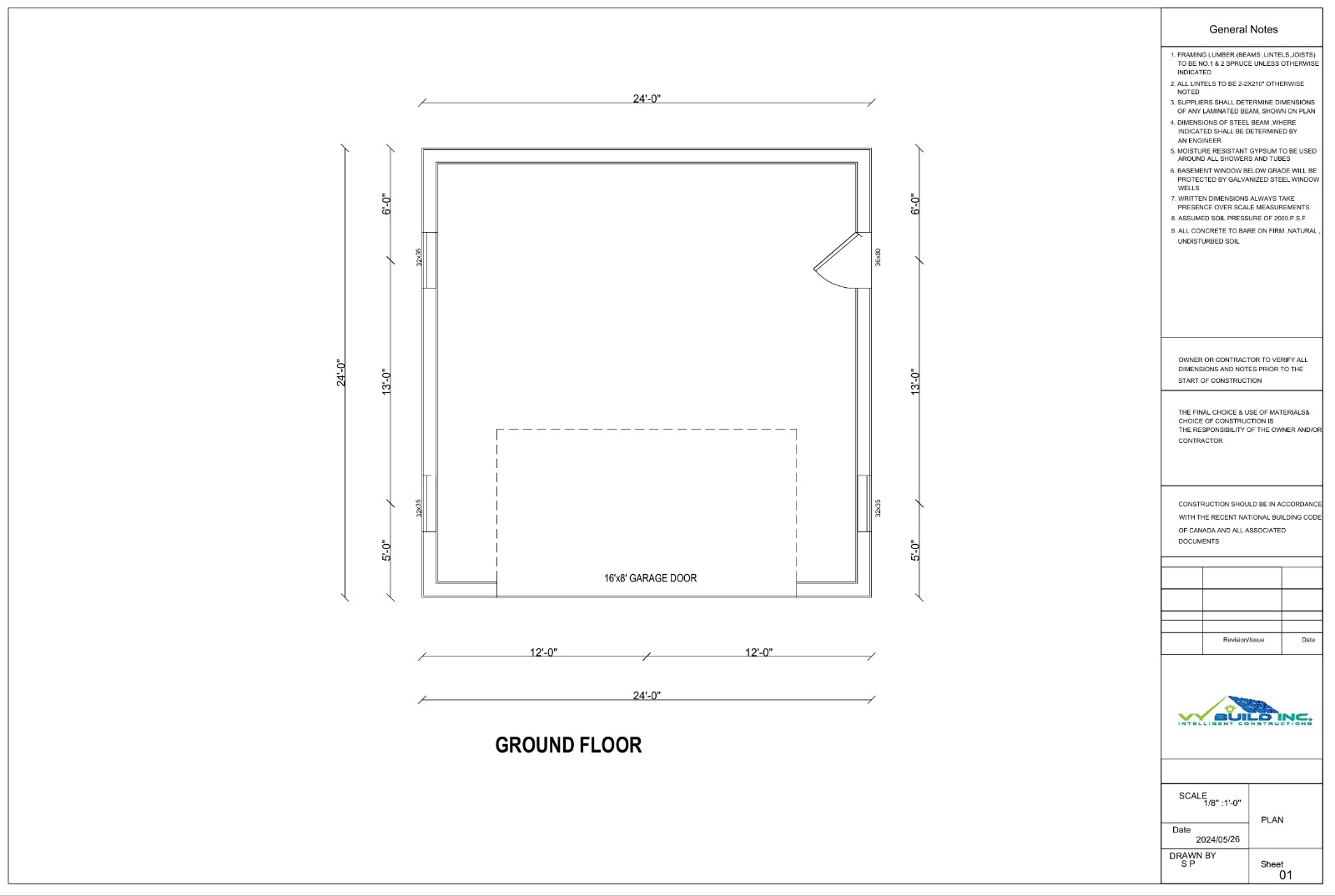

The floor plan
The plan comes with the kit as a full drawing set, in the wall system you choose below. Order it on its own for a standalone garage, or alongside one of our house kits so the windows match the house.
What the price covers
In the kit
- 3 Drutex tilt-and-turn windows, 32″ × 36″
- 1 Drutex service door, 40″ × 82″
- The 24 × 24 garage drawing set for your chosen wall system
- Ocean freight and delivery to PEI
Quoted separately
- The overhead garage door — tell us the opening and we will price a Drutex D-GATE
- Flooring — a garage slab does not take a click floor, so there is none in the package
- Wall system, roof structure and covering
- Slab, electrical, heating and insulation
- Installation labour
Choose your glazing
Triple glazed
$5,350
Certified Uw 0.94 W/(m²·K) on the tested unit. What we recommend for the Island.
Double glazed
$5,250
Same frames and hardware, around 1.3 W/(m²·K). Ask us to switch the order.
Prices are in Canadian dollars and include freight to Prince Edward Island. We ship across the Maritimes; for other provinces ask us for a shipping rate.
The windows you are buying
| Line | Drutex IGLO 5 Classic, 70 mm five-chamber PVC |
| Triple glazing | 4 mm low-e / 14 mm argon / 4 mm / 14 mm argon / 4 mm low-e, Swisspacer Ultimate warm edge |
| Certified Uw, triple | 0.94 W/(m²·K) |
| Tested to | EN ISO 12567-1:2011, ITC Zlín, certificate 26 015 CV |
| Double glazing | around 1.3 W/(m²·K), same frame and hardware |
| Hardware | MACO Multi-Matic KS, eight-point closure, tilt and turn |
| Sealing | Three gaskets: frame, mid-seal, sash |
The 0.94 figure is the laboratory result for the tested unit. Uw moves with the size and the frame-to-glass ratio of each opening, so a small window scores worse and a large one better. We quote the value for your actual sizes — we do not print one number and let you assume it applies everywhere.
The IGLO 5 Classic page · The Uw certificate (PDF) · All certificates
The window and door schedule
This is the whole list. Nothing is hidden behind a quote.
| Type | Size (inches) | Size (mm) | Qty |
|---|---|---|---|
| Tilt & turn window | 32 × 36 | 813 × 914 | 3 |
| Service door | 40 × 82 | 1016 × 2083 | 1 |
| Overhead garage door | 16′ × 8′ | — | not included |
Stick frame or OSBLOCK
The plan is drawn twice, and you choose which drawing set arrives with the kit. This changes nothing about the windows, the doors or the floor — the openings are identical either way. It changes what your framer builds around them.
Conventional 2×6 stick frame
- What almost every crew on the Island already builds
- Materials from any local yard
- No new trade to find, no learning curve
- This is the default set
OSBLOCK™ R32
- Insulated block wall, R32 assembly
- Fewer thermal bridges than a stud wall
- Goes up fast with a small crew
- VY Build no longer supplies the blocks, but we will put you in touch with the supplier
Pick your set above the cart button. If you are still deciding, order the stick-frame set — we will send the OSBLOCK drawings later at no charge if you switch.
How this differs from the 20 × 30
This garage is 24′ × 24′, 576 square feet, with a 16′ × 8′ overhead door opening and three 32″ × 36″ windows. The 20 × 30 is 600 square feet, longer and narrower, and carries two of those windows plus a smaller 24″ × 30″. That is the whole difference in the package.
Different sizes? That is normal here
Drutex builds to order in Bytów, Poland. Nothing comes off a shelf, so a window that is 47 inches wide costs what a 47-inch window costs — there is no penalty for leaving a standard list. Building to your own garage drawings? Send us the opening schedule and we will price it.
Finishes
Over thirty veneer and RAL finishes, and the inside face can differ from the outside — white indoors with anthracite outdoors is the common choice here, and it is the combination in the cutaway above. A colour change is a small surcharge; a size change takes the order out of this fixed price and into a quote.
Lead time
Six to eight weeks from order confirmation to delivery on the Island, ocean freight included.
Certification
All Drutex window lines are certified in the NFRC Certified Products Directory and we quote those values without reservation. The IGLO PVC lines were removed from the NRCan ENERGY STAR Canada list in August 2026; Drutex has confirmed that re-applications are filed. We are not making ENERGY STAR claims for these windows until they are listed again.
